After spending some time behind the new Swampfox Raider 1X Micro Prism Sight, I’m thinking about selling all my rifle red-dot sights. I’m kidding, of course, as I have a lot of great red dots that I love, but the Raider offers a ton of advantages over a red dot for a close-quarters fighting rifle. In fact, it has taken a full-time position on my primary home-defense gun.
After spending some time behind the new Swampfox Raider 1X Micro Prism Sight, I’m thinking about selling all my rifle red-dot sights. I’m kidding, of course, as I have a lot of great red dots that I love, but the Raider offers a ton of advantages over a red dot for a close-quarters fighting rifle. In fact, it has taken a full-time position on my primary home-defense gun.
Red-dot sights aren’t going anywhere, especially for pistols, but a 1X prism sight with a good reticle has a lot of potential to push red dots out of the close-quarters rifle space.
Let’s break down the main differences between a red-dot sight and a prism sight. A red dot works by projecting a laser onto a lens inside the optic housing. Like a traditional scope, the sight can be adjusted vertically and horizontally to match where your bullets land, making the dot your aiming point.
Red dots come in many shapes and sizes, from tiny optics for pistols to larger ones for rifles and shotguns. However, they do have drawbacks. They rely entirely on batteries, and many people experience a “starburst” effect due to astigmatism, which can make the dot appear blurry or distorted.
Prism sights operate differently. Instead of lenses that move like in traditional scopes, they use fixed reflective prisms, similar to those found in binoculars. Many prism sights have magnification like 3X or 5X, but 1X prism sights like the Raider have unique advantages.
A major benefit of a prism sight is its etched reticle, which does not require power to remain visible. Even if the battery dies, the reticle is still clearly visible.
Additionally, prism optics eliminate the starburst effect, making them a great option for shooters with astigmatism.
When illumination is turned on, the prism sight functions much like a red dot. However, unlike red dots, the etched reticle remains visible even in bright daylight without illumination. This combination gives shooters the best features of both red dots and traditional scopes.

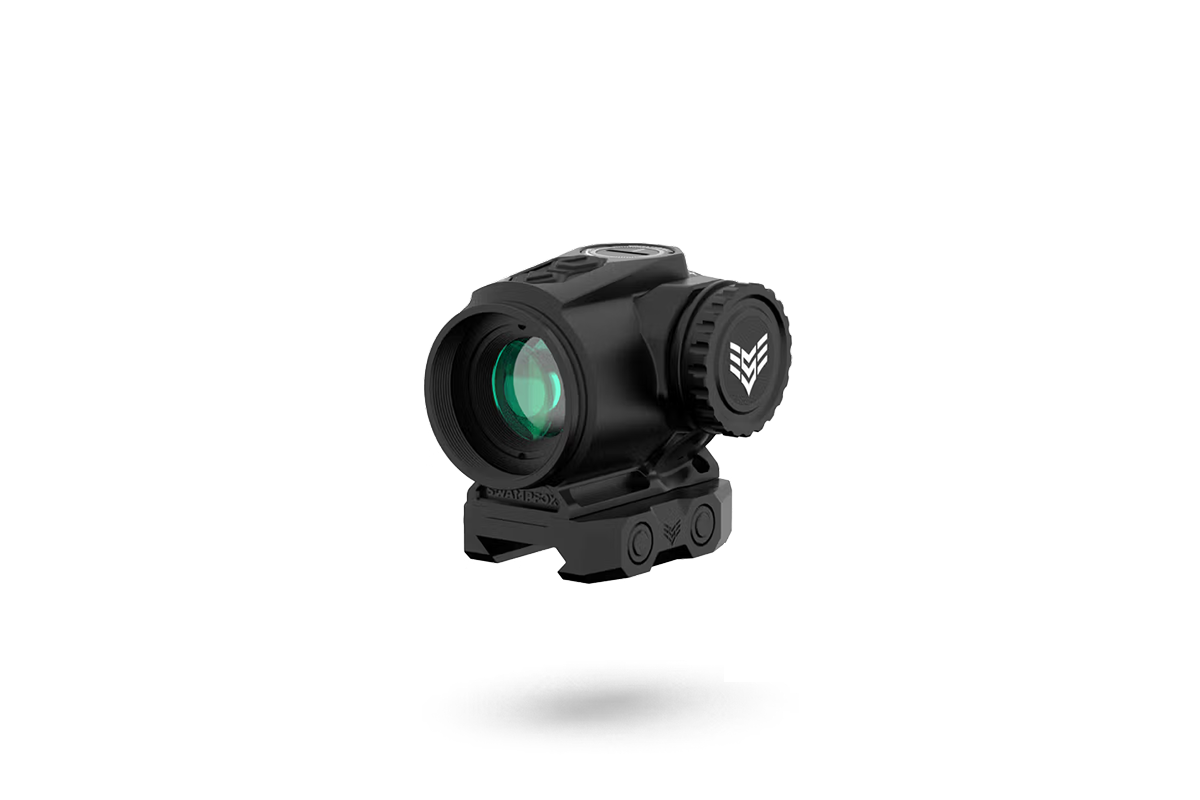

The Swampfox Raider has a compact design and weighs less than eight ounces. Brightness controls and elevation adjustments are located on the top of the optic, while the windage adjustment is on the right side.
The Raider is powered by a CR2032 battery, providing an impressive 35,000-hour battery life.
Swampfox designed the optic with the Aimpoint T-2 mounting interface, meaning there are many compatible mounts available. Swampfox also offers its own optional Outlaw riser mount for shooters who want a higher mounting position on their rifles.
The Raider features a 20mm objective lens, similar to many closed-tube red dots designed for rifles. The optic is rated IPX7 waterproof, meaning it can handle rain, debris, and even brief submersion.
The lens is fully multi-coated, which helps improve clarity and light transmission. Looking through the optic provides a clear image with only minimal edge distortion, which is common in most 1X optics.
Swampfox also includes some helpful accessories. The optic comes with durable lens covers and a honeycomb anti-reflection device (ARD) to reduce glare from the front lens.
One of the Raider’s most unique features is its BRC (Bullet Rise Compensation) reticle.
Most optics use a BDC (Bullet Drop Compensation) reticle, which helps shooters adjust for bullet drop at longer distances. The Raider’s BRC reticle instead helps compensate for bullet rise at extremely close distances, where optic height above the barrel becomes a factor.
The reticle includes:
Above the chevron is a 102-MOA horseshoe, which helps shooters quickly acquire targets during fast shooting situations.
The Raider’s reticle includes 10 brightness settings, with the lowest two designed for night vision devices.
Unlike many prism optics where only the center dot illuminates, the Raider illuminates the entire reticle, which is especially useful for close-range aiming points during low-light situations.
The optic also includes a Shake N’ Wake feature. When the rifle remains still for a period of time, illumination automatically shuts off to conserve battery. The reticle instantly turns back on when the optic detects movement.
The Swampfox Raider works especially well on AR-15 rifles, particularly short-barreled rifles (SBRs) designed for close-range shooting.
Its etched reticle, compact design, and close-range reticle system make it an excellent optic for defensive rifles. Even if the battery dies, the reticle remains visible, giving the shooter a reliable aiming system at all times.
For shooters who struggle with red dot distortion or want a battery-independent optic, the Raider offers a compelling alternative while still maintaining the speed and simplicity needed for close-quarters shooting.
